About the Product:
Designed, manufactured, tested and certified to meet R-8.0 code requirements for all duct types, the rFOIL Big 8, 2280 Reflective Duct Insulation series is a consistent contractor’s choice.
An inspector-friendly, easily-visible, code certification strip on the Big 8 means no hassles at the job site and extra peace of mind for installers!

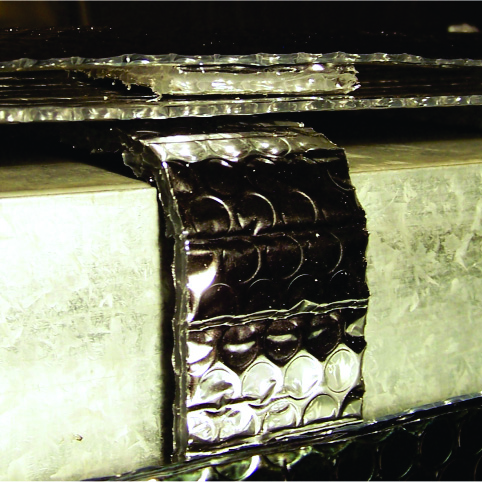

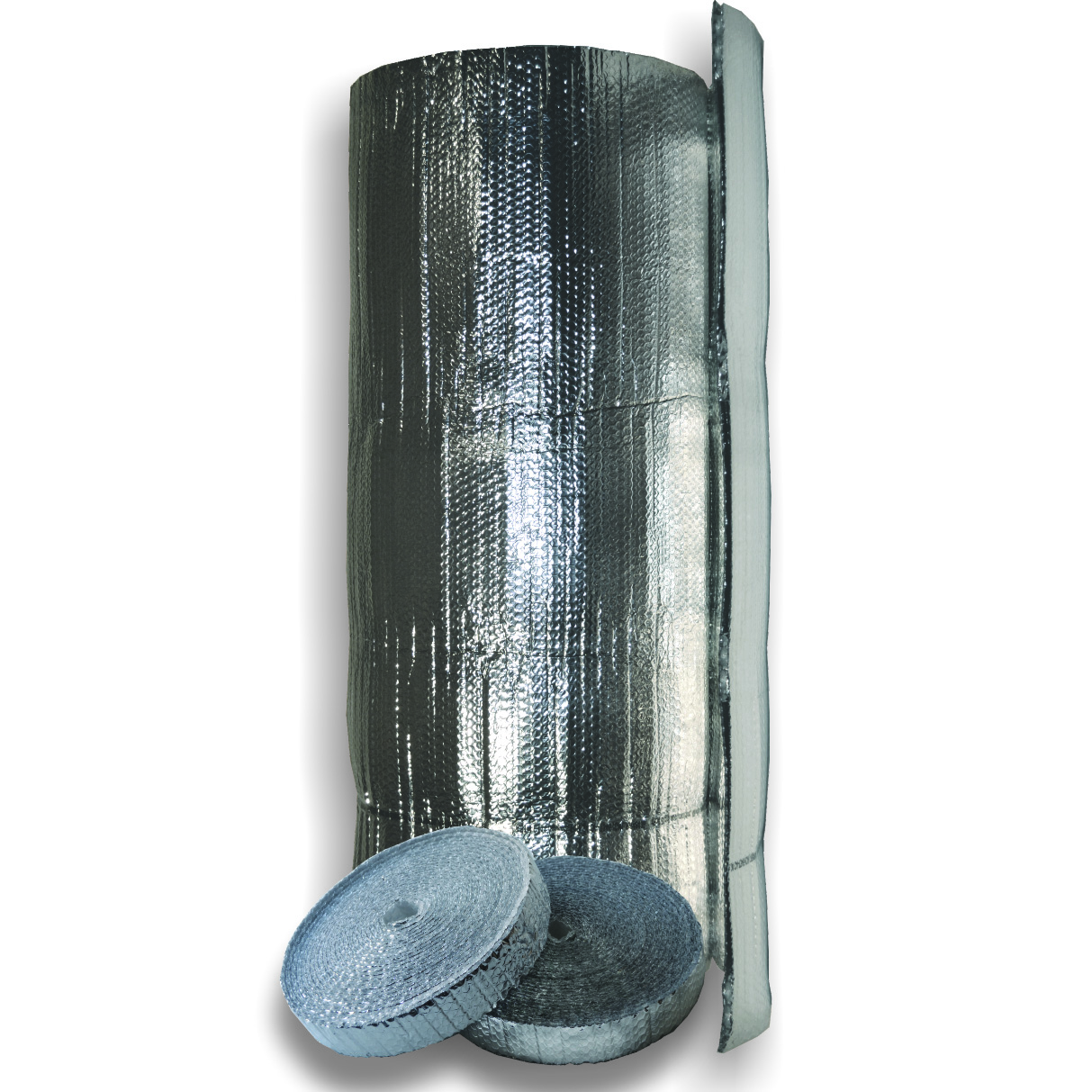

Our rFOIL Big 8 2280 Reflective Duct Insulation series consists of two layers of thick polyethylene bubble pack reflective insulation, connected by 2-inch wide spacers.
The Big-8 Reflective Duct Insulation has been tested to an R-8 and is classified as Class 1/Class A in accordance with the ASTM E84-09 fire test standard. The product was mounted in accordance to ASTM-E2599-08. The rFOIL Big-8 is specially designed to reduce radiant heat gain/loss in all residential and commercial duct applications. rFOIL also helps control condensation by providing an airtight thermal break around duct work.
Benefits:
- Stops virtually all heat from RADIATING into or out of duct systems
- Sealed air spaces provide tremendous condensation control
- High compression resistance maintains thermal value
- Clean, safe, and easy installation results in lower labor costs
- Simple to cut and configure around obstructions
- Will not harbor mold, mildew, or other fungi
- Faster reaction time for radiant floor heating
- Will not rot, degrade, compress or break down thermal value over time
- Seals duct system from attic dust and fibrous glass particles
- Allows inspectors to easily identify product and specs
Applications:
HVAC/R & Plumbing Contractor
- Duct Insulation – R-8.0
Product Codes/Sizes:
HVAC/R & Plumbing Contractor
- 2280-48-050 (48“x 50’)
- 2280-48-075 (48“x 75’)
Literature:
Click here to link to our product literature library for additional information.
